Hey Guys,
After a week of working on the boat, during some very hot and humid weather, we finally made some progress. Here are a few pictures of the side decks going on and the stern hatches.

- Neil





Bottom side of the hatch spacer and landing.

Topside view of hatch landing.

That's what they should look like.

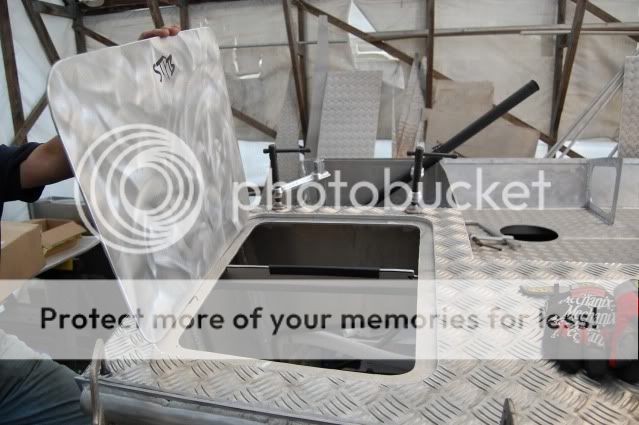

Hatch cover sitting in the landing. These covers were bent in a hand press to mirror the camber curve of the stern deck.

More pictures - bow deck, bow cleat, and leaning post sockets.
- Neil

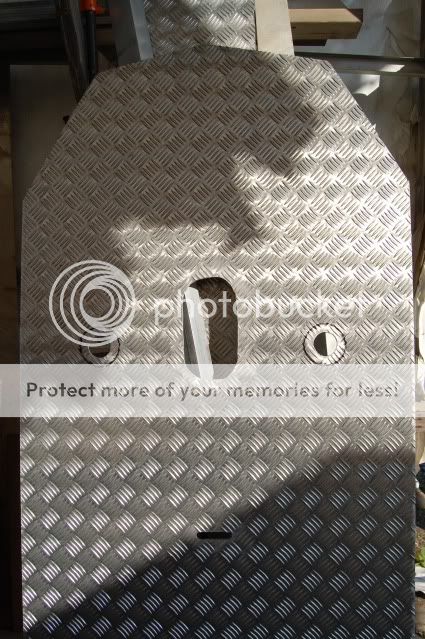

This is the main (middle) bow sheet that makes up the bow deck. You can see the two plug weld holes, the cut-out that drops over the bow cleat, and the two cut-outs for the leaning post sockets. The tread plate makes everything a little bit harder as the tread bead needs to be ground back so fittings seat flush to the sheet.

Bow end of the same sheet.

Bow cleat. The cleats are made out of 1" rod and are welded to a backing plate on both sides. The bow cleat was then welded to a landing made out of angle.

Port side fuel fills.

The legs of the leaning post (for fishing from the bow deck ) drop through these two water fill fittings and land on a pair of stainless bolts mounted through a pair of angle brackets. A pair of pvc fittings screw into the water fills to quiet the leaning post legs and take up any slop between the leaning post legs and the inside walls of the water fills. The idea is that when you remove the leaning post, all you have left is two low profile water fills.

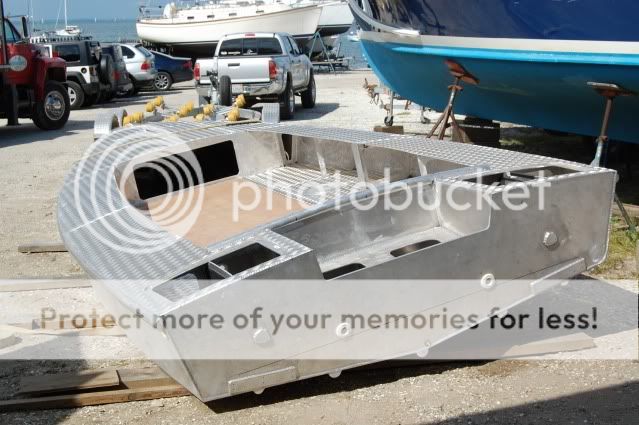

View of cockpit floor and decking.

Flying duckboat... trying to flip the boat with the crane to weld on the underside of the topside decks. This didn't end up working so well (even though we've flipped the boat before). The slings were slipping on the hull and we were having trouble creating enough drag on the bottom edge of the hull to flip it over. It was pretty tight between another boat and the crane truck, so I ended up welding overhead, lying on the cockpit floor, to finish the side decks.

- Neil





Gave up swinging it around, so we dropped it on some scrap wood.

View from up on the crane truck.

Back on the trailer.
